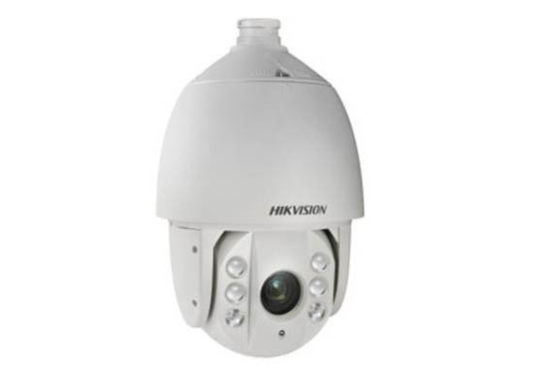

Specification

Camera

• Image Sensor:   1/4" SONY CCD


• Effective Pixels:   PAL:976(H)×582(V)


• NTSC:976(H)×494(V)


• Horizontal Resolution:   Color: 700 TVL


• B/W: 750 TVL


• Signal System:   PAL/NTSC


• Min.illumination:   0.02Lux/(F1.6, AGC ON), 0.0008Lux /(F1.6, AGC ON, sensitivity×256) (color)


• 0.002Lux/(F1.6, AGC ON), 0.00008Lux /(F1.6, AGC ON, sensitivity×256)(B/W)


• 0 Lux with IR


• White Balance:   Auto / Manual / ATW / Indoor / Outdoor


• AGC:   Auto/Manual


• S/N Ratio:   ≥ 50dB


• DNR:   3D DNR


• WDR:   128x (on / off / auto)


• Shutter time:   PAL: 1-1/10,000s


• NTSC: 1-1/10,000s


• Day&Night:   ICR


• Digital Zoom:   16x


• Privacy Masking:   8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen


• Focus Mode:   Auto / Semi-automatic / Manual


Pan & Tilt

• Pan Range:   360° endless


• Pan Speed:   Pan Manual Speed: 0.1°-160°/s,


• Pan Preset Speed: 240°/s


• Tilt Range:   -15°-90° (Auto Flip )


• Tilt Speed:   Tilt Manual Speed: 0.1°-120°/s,


• Tilt Preset Speed: 200°/s


• Proportional Zoom:   Rotation speed can be adjusted automatically according to zoom multiples


• Number of Preset:   256


• Patrol:   8 patrols, up to 32 presets per patrol


• Pattern:   4 patterns, with the total recording time not less than 10 minutes


• Power-off Memory:   Support


• Park Action:   Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan


• PTZ Position Display:   ON/OFF


• Compass:   Support , the north can be set


• Scheduled Task:   Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan


• RS-485 communication diagnosis:   Including failure information, e.g., wrong address, baud rate errors, et., displayed on the video screen in text


Input & Output

• Monitor Output:   1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC


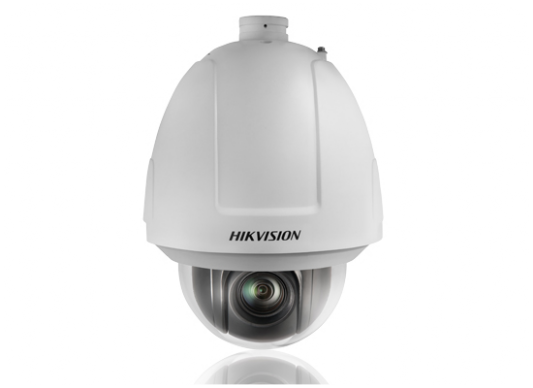

Datasheet of DS-2AE7168

User manual of DS-2AE7168

Lens
Focal Length:   3.3-119mm, 36X
Zoom Speed:   Approx.4.4s(Optical Wide-Tele)
Angle of View:   57.1°-1.7°(Wide-Tele)
Minimum Working Distance:   10-1500mm (Wide-Tele)
Aperture Range:   F1.4 – F4.2

Pan & Tilt
Pan Range:   360° endless
Pan Speed:   Pan Manual Speed: 0.1° -300°/s,
Pan Preset Speed: 540°/s
Tilt Range:   -5°~185° (Auto Mirror)
Tilt Speed:   Tilt Manual Speed: 0.1°-240°/s,
Tilt Preset Speed: 400°/s
Proportional Zoom:   Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:   256
Patrol:   8 patrols, up to 32 presets per patrol
Pattern:   4 patterns, with the total recording time not less than 10 minutes
Power-off Memory:   Support
Park Action:   Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
PTZ Position Display:   ON/OFF
Freeze Frame:   Support
Password Protection:   Support
Zone Scanning/Display:   Scanning within programmed zone, display zone title
Camera Title:   Programmable title display
Compass:   Support , the north can be set
Scheduled Task:   Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
RS-485 communication diagnosis:   Including failure information, e.g., wrong address, baud rate errors, et., displayed on the video screen in text
Manchester code communication diagnosis:   Including failure information, e.g., wrong address, baud rate errors, et., displayed on the video screen in text
Smart-tracking:   Support

Alarm
Alarm Input:   2 inputs(7 inputs optional)
Alarm Output:   2 relay outputs, alarm response actions option

Input & Output
Monitor Output:   1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC

General
Menu Language:   English / Chinese
RS-485 Protocols:   HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power Supply:   24V AC
Power Consumption:   Outdoor dome: Max. 40W (Heater On), Max. 20W(Heater Off)
Indoor/In-ceiling dome: Max. 20W
Working Temperature /Humidity:   -30 ℃-65℃(-22℉-149℉)(outdoor dome) / -10℃-50℃(14℉-122℉)(indoor dome )
90% or less
Protection Level:   IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
Mounting:   Various mounting modes option
Dimensions:   Φ220×325.5mm (Φ8.66”×12.81”)(Outdoor)
Φ183.4×243mm(Φ7.22”×9.56”) (Indoor)
Φ245×236mm(Φ9.65”×9.29”) (In-ceiling)
Weight(approx.):   5Kg (11.02Ibs)
Mount Option:   Long-arm wall mount: DS-1601ZJ; Corner mount: DS-1633ZJ; Pole Mount: DS-1622ZJ; Power box mount:DS-1634ZJ

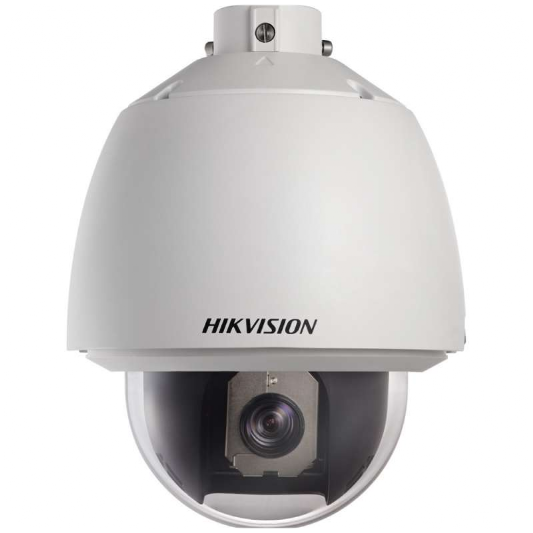

Lens
Focal Length:   3.3-119mm, 36X
Zoom Speed:   Approx.6 s(Optical Wide-Tele)
Angle of View:   57.1-1.7 degree(Wide-Tele)
Minimum Working Distance:   10-1000mm (Wide-Tele)
Aperture Range:   F1.4-F3.7

Pan & Tilt
Pan Range:   360° endless
Pan Speed:   Pan Manual Speed: 0.1°-250°/s,
Pan Preset Speed: 300°/s
Tilt Range:   -5°~90° (Auto Flip )
Tilt Speed:   Tilt Manual Speed: 0.1°-150°/s,
Tilt Preset Speed: 200°/s
Proportional Zoom:   Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:   256
Patrol:   8 patrols, up to 32 presets per patrol
Pattern:   4 patterns, with the total recording time not less than 10 minutes
Power-off Memory:   Support
Park Action:   Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
PTZ Position Display:   ON/OFF
Compass:   Support , the north can be set
Scheduled Task:   Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
